100ml ISO Cosmetic Packaging Laminated Round Tube with Pearl luster
Plastic Barrier material for face clean hands cream
Feature:
1.Material,Pearl luster:The surface of tube is made of material with pearl luster. this a
plastic barrier laminated tube,all the material is made of
plastic.Thus,the tube is equipped with good resilience and good touch feeling,but also a gloss of pearl luster.
2.Perfect printing Method.Full panel printing, and then tubing,this kind of handle give a
different printing effect.Generally,360 degree printing could be
achieved.So quantities of vision effect could be designed and
achieved benefited from the perfect method.
3.Ingenious printing design coupled with cold stamping. The particularity of the pringting is that the material is printed
aftert cold stamping.It has an exquisite exterior appearance, which greatly improves the
quality of the products.
4.chemical resistance.The special aluminizing process and material provides the aluminum
film with excellent chemical resistance.
5. High-barrier property, high-barrier property, smooth feel and good resilience of
gas,oil,water ,moisture because of using evoh.
Material:
PBL:Plastic Barrier Laminated Tube
Details:
Usage:
Facial care: conditioners, Moisturizer, facial cleansers
Skin Care: body washes, hands and body lotions, Hands cream,
deodorants,
Hair Care: shampoos, hair styling.
Make up: BB cream, CC cream.
Customer Brand
P&G,Unilever,Pantene, , Pond's, VS, O`Loreal,Henkel,etc
Our PBL serial product
| property | Detail |
| Material | PBL: Plastic barrier laminated tube(EVOH as barrier) |
Thickness Range
(mm/mm) | 300,350,375,425 |
Length Range
(mm) | 43-193 |
Diameter Range
(mm) | 16,19,22,25,28,30,32,35,38,40,50,60 |
| Printing method | Flexography/Gravure/silk screen/ |
| Printing artwork | Plain, or printed with the customized designs according to your
requirement. |
| Color | 1. Gravure: max 9 different colors
Silk screen: max 5colors
2. Panton colors are acceptable |
| Surface Treatment | 1.Hot stamping gold,sliver or other customized metal.
2.Gloss/matt vanish
3.Silk screen |
| Nozzle/pump | 1.Nozle with membrane/ elongate nozzle
2.Lotion Pump;vacuum pump
3.nozzle and pump customized. |
Other serial material
| property | Detail |
| Material | 1.APT:All plastic tube.(Plastic film as barrier)
2.ABL: Aluminium barrier laminated tube(AL foil as barrier)
3.CAL: Coated Alunimium laminated tube(AL,EVOH as barrier)
4.CAL+:Coated Alunimium laminated tube+
5.HAL:Holographic Alunimium laminated tube |
Tube dimension options
| Tube Diameter | Tube length |
|
| Inch | mm | All Sanying tube lengths are for reference only. They may be
adjusted in accordance with customer requirement. Tube length in
inches |
| 1/2" | 12.7
mm | | | | | | | | | | | | | | | | |
| 5/8" | 16mm | | | | | | | | | | | | | | | | |
| 3/4" | 19mm | | 2.0'' | 2 4/9'' | 3 1/4'' | 4 1/11'' | | | | | | | | | | | |
| 7/8" | 22mm | | 1 4/5'' | 1 1/6'' | 2 3/4'' | 3 1/3'' | 3 14/15'' | 4 1/2'' | | | | | | | | | |
| 1" | 25mm | | | 1 25/26'' | 2 4/9'' | 2 11/12'' | 3 1/3'' | 3 3/4'' | 4 2/3'' | 5 7/12'' | 6 1/2'' | | | | | | |
| 1 1/8" | 28mm | | | | 1 1/6'' | 2 6/11'' | 2 11/12'' | 3 1/3'' | 4'' | 4 8/11'' | 5 3/7'' | 6 1/2'' | | | | | |
| 1 3/16" | 30mm | | | | | 2 3/8'' | 2 2/3'' | 3'' | 3 8/13'' | 4 1/4'' | 4 5/6'' | 5 3/4'' | 7 1/4'' | | | | |
| 1 1/4" | 32mm | | | | | | 2 4/9'' | 2 5/7'' | 3 1/4'' | 3 3/4'' | 4 3/8‘’ | 5 1/5‘’ | 6 3/5'' | 7 7/9'' | | | |
| 1 3/8" | 35mm | | | | | | | | 3'' | 3 5/11'' | 3 14/15'' | 4 2/3'' | 5 3/4'' | 6 6/7'' | 8'' | | |
| 1 1/2" | 38mm | | | | | | | | | | | | | | | | |
| 1 4/7" | 40mm | | | | | | | | | | 3 1/3'' | 3 3/4'' | 4 8/11'' | 5 7/12'' | 6 1/2'' | 8 1/6'' | |
| 1 28/29" | 50mm | | | | | | | | | | | | 4 3/22'' | 4 2/3'' | 5 3/4'' | 6 6/7'' | 7 7/8'' |
| 2 11/30'' | 60mm | | | | | | | | | | | | | | 4 | 4 7/9'' | 5 1/2'' |
Approx.
vol.fl.oz. | | 0.14 | 0.25 | 0.35 | 0.53 | 0.70 | 0.88 | 1.06 | 1.41 | 1.76 | 2.11 | 2.64 | 3.52 | 4.40 | 5.28 | 7.04 | 8.80 |
Approx.
vol.grams. | | 4.2 | 7.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 | 50.0 | 60.0 | 75.0 | 100.0 | 125.0 | 150.0 | 200.0 | 250.0 |
Production Flow
Equipment List
| Equipment | Origin | Quantity |
| Blown Machine Lines | Germany | 2 |
| Gravure press | Tiawan | 6 |
| Extrusion Lamination | Germany | 2 |
| | Japan | 2 |
| Dry Lamination | Taiwan | 3 |
| | Italy | 1 |
| Slitting | Germany | 3 |
| | Taiwan | 13 |
| Tuber making machine | Switzerland | 9 |
| Shouder mould Lines | China | 36 |
| Bag making Machine | Japan | 7 |
About us

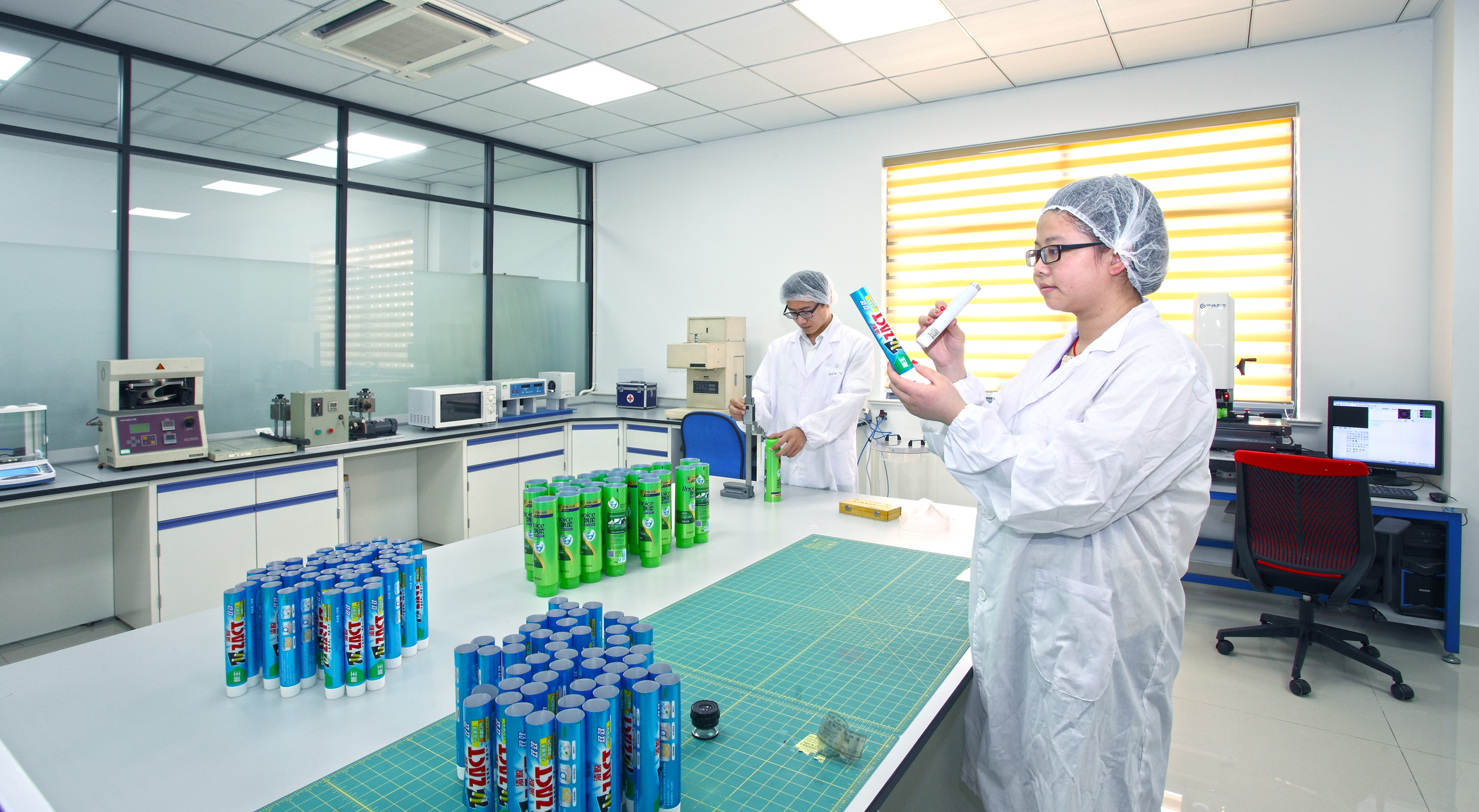

our R&D
We believe that a great product is built from all employee’s
professional experience and contributions. From the beginning of a
new client relationship to ongoing support, our team of
professionals have one goal in mind, which is client satisfaction.
Our company’s focus on laminated packaging materials lead us to
establish an independent technology R&D center, which
introduced advanced technology into our field.
We currently have a 28 member team of R&D engineers; 7 for
equipment & technology, 10 for product R&D, 4 for
standardization, and 5 for design. We house 13 advanced
experimental equipment and manufacturing testing equipment to
inspect raw material, semi-finished and finished products.
Since our founding, a core concept has been “Green packaging
through packaging science and technology”. We have strengthened our
R&D in key areas of surface treatment, laminated technology,
new material science, anti-counterfeiting technology, and new bag
and tube technology. We have become a leader in part by our
technical innovations in the field of laminated packaging. We keep
product advantages through independent IP rights which ensures our
company’s leading position in our market and continued global
growth.
Our quality system
1.sanying has a holistic quality control system.
Food QS certification
2.Drugs packaging materials and containers
Registration Form Permit by CDA
(One hundred thousand stage purification workshop)
3.ISO9001certification
4.BRC certification
5.GMI certification
Sanying owned a complete internal quality control standards
including:
Supplier choosing standard; Raw material inspection standard;
Process control standard; Finished product inspection standard;
Corrective and preventive action .
Our company perspective
